The Definitive Guide to M12 A-Code Connectors: Engineering Excellence for Harsh Environments

Defining the Industry Standard: What Is an M12 A-Code Connector?

In the complex architecture of industrial automation, the m12 connector stands as the undisputed champion of reliability. Specifically, the m12 a code variant is the foundational interface for delivering low-voltage power and direct signaling to field devices. Governed strictly by the iec 61076 2 101 standard, this circular connector m12 guarantees universal compatibility across global manufacturing systems.

Whether deployed as an m12 female connector on a distribution box or an m12 male connector on a pneumatic valve, its internal m12 connector coding (A-Code) ensures precise mating, preventing disastrous cross-wiring in dense m12 sensor arrays.

Engineering Superiority: Why Top Firms Choose HOLIN’s M12 Electrical Connectors

Not all connectors are forged equal. While mass-market manufacturers compromise on materials to reduce costs, Holin-Tech engineers every m12 electrical connector and m12 plug connector to survive the most punishing industrial realities. Here is the Holin-Tech competitive advantage:

• 100% Premium Virgin Plastics: We categorically refuse to use recycled plastics. Every m12 plug and housing is molded from pure, virgin materials to prevent micro-cracking and ensure long-term structural integrity under extreme temperature fluctuations.
• CNC-Machined Copper vs. Cast Zinc: Most competitors utilize cheap, porous die-cast zinc alloys for their metal components. Holin-Tech utilizes solid copper, precision-machined via CNC, and protected by heavy-duty electroplating. This delivers unmatched mechanical strength and superior shielding for our m12 sockets.
• Elite 6u" Gold-Plated Contacts: Signal degradation is unacceptable. Instead of industry-standard "gold flash" or 1u" or 2u", every Holin-Tech connector pin features a robust 6u" gold plating, guaranteeing oxidation resistance and flawless data transmission over thousands of mating cycles.
• Uncompromising IEC Compliance: Every product strictly adheres to the iec 61076 2 101 standard, ensuring seamless integration with global automation ecosystems.
• Absolute Customization: We do not just sell off-the-shelf parts; we engineer solutions. From altering the physical dimensions of an m12 panel mount connector to customizing the internal pin layout and selecting extreme-environment jacket materials, we tailor our products to your exact specifications.
• Supreme Environmental Resilience: Engineered for zero failure, our M12 assemblies provide exceptional waterproof performance and chemical resistance, safeguarding your critical infrastructure.

Expert Insights: M12 Connector Pinouts, Configurations, and Applications (Q&A)

Q1: What are the available pin counts for an M12 A-Code connector, and what is their primary application?
A: Selecting the correct pin configuration is critical to ensuring functional safety and signaling accuracy. Holin-Tech provides a highly scalable portfolio ranging from 2 to 17 pins to accommodate varying voltage, current, and wiring configurations.

Below is the definitive reference matrix detailing the standardized functionalities, electrical ratings, and typical applications across different pin configuration:

Pin Assignment Front View	Pin Count	Rated Voltage	Rated Current	Primary Function & Typical Industrial Applications
	2 pins	250V	4A	The M12 A-code 2-Pin connector is primarily used for DC power supply and 2-wire sensor connections in industrial automation. Featuring standard A-coded polarization to prevent mismating, it reliably delivers low-voltage DC power (typically 24V) or transmits signals for basic switches and proximity sensors. With an IP67+ waterproof and dustproof rating, it ensures stable power and signal integrity against heavy vibrations and harsh factory environments.
	3 Pins	250V	4A	Optimized for low-density DC power delivery, basic limit switches, and standard auxiliary power routing. This setup is the foundational infrastructure for deploying a standard m12 3 pin connector in simple automation loops. 3-Wire Sensor Connections Pin 1: Power Supply (+24V DC) Pin 3: Power Ground (0V / GND) Pin 4: Signal Output (transmitting PNP or NPN digital switching signals)
	4 Pins	250V	4A	The universal automation benchmark for standard sensors and IO-Link systems. This m12 4 pin configuration routes power and dual-channel (NO/NC) signals. Wiring an m12 4 pin male connector to an m12 female connector 4 pin via an m12 cable 4 pin ensures zero cross-talk for heavy I/O workloads. (297 chars) DC Power Distribution, Analog Signals.
	5 Pins	60V	4A	Standard for DeviceNet, CANbus, and IO-Link Class B networks. This m12 5 pin configuration delivers auxiliary power and dual safety signals. Utilizing an m12 5 pin cable to link an m12 5 pin male connector with an m12 5 pin female connector ensures zero signal interference in smart sensors.
	8 Pins	30V	2A	Mandated for rotary encoders, motion control, and multi-channel telemetry. This m12 8 pin connector architecture supports high-density signaling. Interconnecting an m12 8 pin male connector to an m12 8 pin female connector via shielded m12 8 pin cable enables flawless data integration to m12 to rj45 networks.
	12 Pins	30V	1.5A	Engineered for high-speed machine vision cameras and multi-axis robotics. This m12 12 pin configuration provides ultra-high-density signal routing within extreme space constraints. Deploying a premium 12 pin m12 assembly guarantees flawless multi-channel data acquisition with zero packet loss.
	17 Pins	30V	1.5A	The pinnacle of micro-precision for semiconductor tooling and aerospace test rigs. This m12 a code 17-pin configuration delivers maximum spatial economy. Deploying our specialized circular connector m12 design ensures flawless ultra-high-density data transfer across complex proprietary machinery.

Q2: What waterproof ratings are available for an M12 cable or connector?
A: Water ingress is the leading cause of electrical failure in automation. Holin-Tech engineers our m12 cable assemblies and m12 field wireable connector solutions to meet the most stringent Ingress Protection ratings. Standard models are rated at IP66 or IP67 for temporary submersion and high-pressure washdowns, while specialized custom solutions can be upgraded to IP68 for continuous underwater operation.

Q3: What cable material variations are available for an M12 sensor cable or M12 to M12 connector?
A: The jacket material of your m12 sensor cable or inline m12 to m12 connector is just as crucial as the contact pins. Holin-Tech offers standard PVC for static indoor routing, PUR (Polyurethane) for dynamic, high-flex robotic applications demanding oil and abrasion resistance, and specialized TPE or Teflon for extreme temperature or highly corrosive chemical environments.

Q4: While A-Code is for sensors, what if my system requires an M12 network cable for industrial Ethernet?
A: This is a critical distinction. While A-Code handles power and analog/digital signaling, data-heavy networks require different coding. Holin-Tech fully supports these infrastructures. We manufacture D-Code and X-Code configurations for high-speed protocols, including m12 ethernet, profinet m12, and gigabit transmission. Whether you need an m12 to m12 ethernet cable, a specialized m12 ethernet cable, or a ruggedized m12 to rj45 (or m12 rj45) m12 adapter, we provide secure networking solutions. We even supply unique bridge solutions like m12 to usb adapters for specific diagnostic equipment.

Q5: How does Holin-Tech customize an M12 circular connector for extreme climates and environments?
A: Generic connectors fail in extreme realities. If your equipment operates in sub-zero freezers, offshore marine platforms, or high-acid chemical plants, we completely re-engineer the solution. We can modify the shell material (upgrading standard metals to high-grade stainless steel for maritime use), alter the m12 connector coding interfaces, customize the overmolding geometry for tight spatial constraints, and select extreme-temperature internal potting compounds. Your operational environment dictates our manufacturing protocol.

Q6: What is the M12 A-Code standard?
A: The m12 a code standard is a globally recognized specification governed by the international electromechanical benchmark iec 61076 2 101. This standard defines the precise physical dimensions, mechanical keying, and electrical performance boundaries for a 12mm metric threaded circular connector m12 housing.
Specifically, A-coding features a unique internal geometry designed to route low-voltage direct current (DC) power and standard analog/digital signals. Because it is highly standardized, any compliant m12 female connector or m12 male connector can seamlessly interconnect across different equipment brands, acting as the universal interface for industrial automation infrastructures.

Q7: What is the difference between A-code, D-code, and X-code M12 connectors?
A: The fundamental difference lies in their internal pin layouts, mechanical keying (preventing accidental cross-mating), and their engineered bandwidth for electrical data transmission:

• A-Code (Sensors & DC Power): Engineered with standard pin configurations (ranging from 2 to 17 pins). It is universally designated for m12 sensor arrays, DC actuators, and IO-Link communication, but it lacks the frequency isolation required for high-speed Ethernet backbones.
• D-Code (Industrial Ethernet / Fast Ethernet): Typically utilizing a 4-pin architecture, D-coded connectors are optimized for m12 ethernet and profinet m12 automation networks. It supports data transfer rates up to 100 Mbit/s (Cat 5) by isolating signal pairs to prevent data degradation.
• X-Code (Gigabit Industrial Ethernet): Structured as an 8-pin interface with an internal, cross-shaped shielding matrix (Faraday cage) separating the four data pairs. This advanced shielding eliminates cross-talk at high frequencies, making it mandatory for transmitting Gigabit Ethernet (up to 10 Gbit/s, Cat 6A) in high-definition IP camera tracking or heavy data backbones over an m12 to m12 ethernet cable.

Q8: What is the common application for a 4-pin M12 A-Code connector?
A: The m12 connector 4 pin A-coded configuration is the absolute industry workhorse of factory floor I/O connectivity. Its electrical matrix is perfectly balanced to support dual-channel operations and intelligent factory network points.
Its most common industrial applications include:

• Standard Sensor/Actuator Linking: Serving as the default m12 sensor cable interface for proximity switches, photoelectric sensors, and limit switches, where Pin 1 and Pin 3 handle power ($+24\text{V}$/Ground) while Pin 2 and Pin 4 route complementary Normal Open (NO) and Normal Closed (NC) digital outputs.
• IO-Link Master Integration: Acting as the standard hardware port to deploy smart m12 cable 4 pin assemblies that run bidirectional IO-Link data lines, unlocking real-time diagnostic capabilities on the factory floor.
• Pneumatic & Hydraulic Valve Controls: Connecting central PLCs to localized distribution blocks and pneumatic manifolds via high-flex m12 4 pin male connector and m12 4 pin female receptacles to manage fluid automation loops.

Q9: What wire AWG is used for M12 A Code 4 pin, 8 pin, and 12 pin connectors normally?
A: In industrial wire harness manufacturing, the selection of the American Wire Gauge (AWG) is strictly governed by three engineering factors: the connector’s maximum current rating, internal spatial constraints within the 12mm shell, and acceptable voltage drop across the cable run. As the pin count increases, the physical diameter of the individual contact pins shrinks, requiring a finer (higher AWG) conductor.

Below is the definitive reference matrix for standard AWG selections and their corresponding electrical parameters:

The Engineering Logic Behind the AWG Selection:

1. M12 4-Pin A-Code (Power & Heavy Signaling)

1. Because an m12 connector 4 pin configuration standardly carries up to 4A of continuous current, a 22 AWG conductor is highly recommended. It provides sufficient cross-sectional copper area to safely handle a 4A load without triggering severe thermal rise (localized heating).

   • Holin's Custom Capacity: For mission-critical power distribution or cabinet internal routing, Holin-Tech can custom-process panel mounts utilizing up to a heavy-duty 18 AWG lead wire to maximize electrical efficiency.
2. M12 8-Pin A-Code (High-Density Telemetry)

   When the pin density rises to 8 contacts, the rated current drops to 2A per pin due to the narrower pin geometry. 26 AWG is the global industry standard here; it safely dissipates the 2A thermal load while keeping the m12 8 pin cable flexible enough for dynamic machinery and continuous robotic bending. Because 8-pin lines frequently carry sensitive analog feedback, these AWG conductors are usually paired with 360° braided shielding and an integrated EMI ferrite core to eliminate crosstalk.

3. M12 12-Pin A-Code (Micro-Precision Miniaturization)

   Fitting 12 gold-plated contacts into a compact 12mm metric thread profile leaves virtually zero mechanical clearance. The internal solder cups or crimping zones are microscopic. Therefore, an ultra-fine 28 AWG core wire is overwhelmingly specified. This ensures that all 12 insulated conductors can transition through the overmolding tool and connector backshell without being compressed, preventing internal short circuits and dielectric breakdowns.

Case Study:

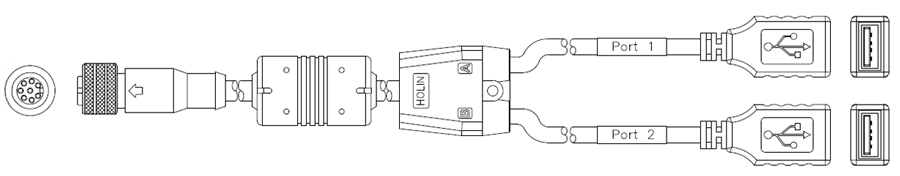

Custom M12 A code 8 pins female overmolded cable assembly with splitter and USB socket.

Engineered Customization: M12 A-Code 8-Pin to Dual USB 2.0 Sockets with Integrated EMI Core

The technical schematic above exemplifies Holin-Tech’s elite capabilities in bespoke interconnect design and cross-protocol hardware integration. This highly specialized, multi-port m12 a code assembly seamlessly bridges advanced industrial circular components with legacy commercial interfaces while maintaining uncompromising signal fidelity.

In this custom engineering deployment, a high-density m12 8 pin connector is overmolded onto a ruggedized m12 sensor cable. To combat severe electromagnetic interference commonly found on smart factory floors, the cable runs through an integrated EMI ferrite core. This specialized core suppresses high-frequency electrical noise and shielding currents before the signal reaches our encapsulated junction block. The assembly then branches out into two independent, heavy-duty USB 2.0 A-Type m12 sockets (Port 1 and Port 2), delivering clean, noise-free data communication.

Our Complete OEM/ODM Customization Capabilities Include:

• Hybrid Interconnect Architectures: We excel at cross-mating the circular connector m12 standard with conventional interfaces. Whether your blueprints require an m12 to usb diagnostic bridge, an m12 to rj45 (or m12 rj45) network link, or complex multi-pin specialized wire harnesses, we make disparate hardware systems communicate flawlessly.
• Advanced EMC Mitigation (EMI Cores): If your operational site is plagued by electrical noise from servo motors or VFDs, we can engineer active or passive shielding upgrades—including inline ferrite cores, 360-degree copper braiding, and specialized internal potting—directly into your custom cable m12 8 pin assembly.
• Bespoke Form Factors & Materials: Customers can specify exact physical shell dimensions, custom pin assignments, and distinct outer jacket materials. We manipulate material science (offering oil-resistant PUR, high-flex TPE for dynamic robotics, or anti-acid Teflon) to ensure your m12 male connector or m12 female connector assets survive their precise micro-climates.

From prototyping custom m12 field wireable connector retrofits to mass-producing high-density multi-port network backbones, Holin-Tech is your premier primary manufacturer for mission-critical custom interconnect systems.

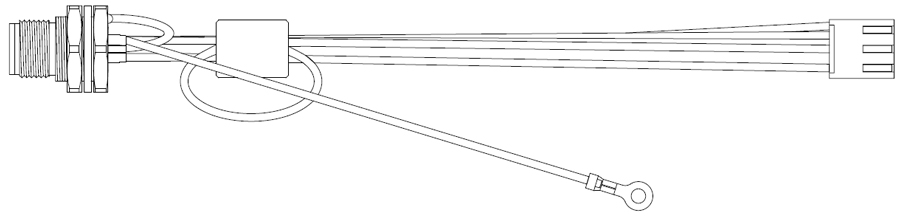

Custom M12 A code 4 pins panel mounting connector wire harness assembly:

Transforming Concepts into Reality: Custom M12 A-Code 4-Pin Panel Mount to Wire-to-Board Harness with Integrated EMI Core

The technical schematic above illustrates Holin-Tech’s capacity to execute complex internal cabinet wiring and bespoke hardware transformations. For this highly specialized OEM project, a standard m12 panel mount connector (A-coded, 4-pin) is masterfully engineered into a fully integrated internal wire harness, tailored precisely to a client's proprietary hardware footprint.

To satisfy the stringent thermal and electrical demands of the application, Holin-Tech utilized premium UL1430 XLPE (Cross-Linked Polyethylene) insulated wires, known for their superior heat resistance and dielectric properties. To address severe electromagnetic susceptibility requirements, our production team manually integrated a precision EMI ferrite core midway through the wire harness, wrapping the conductors to choke high-frequency noise. The assembly terminates dynamically: transitioning into a localized wire-to-board connector for direct PCB interfacing, paired with an independent ring terminal designed for absolute chassis grounding safety.

How Holin-Tech Executes Your Exact Engineering Blueprints:

Premium Lead-Wire Specialization: We do not compromise on internal wiring. From specifying specialized UL-rated conductors like UL1430 XLPE for advanced thermal performance to customizing cross-sectional wire gauges, we ensure your internal cabinet signals remain pristine.

Turnkey Terminal Integration: Our production lines are fully equipped to bridge the m12 connector 4 pin standard with any commercial or traditional terminal housing. Whether your design dictates specialized wire-to-board housings, crimped spade lugs, or secure ring terminal grounding lines, we deliver a plug-and-play assembly straight to your production floor.

Advanced Electromechanical Protection: Protecting sensitive internal electronics from external noise is our priority. By incorporating custom EMI core configurations and robust mechanical strain reliefs onto the m12 female connector or m12 4 pin male connector back-end, we prevent signaling faults and hardware degradation.

Your conceptual drawings dictate our manufacturing protocol. Bring us your complex routing challenges—whether it involves an m12 field wireable connector retrofit, a custom m12 sensor cable setup, or a complex internal panel harness—and Holin-Tech will engineer a ruggedized, deployable solution.

Explore Our Connetor M12A Code Portfolio: Types & Mounting Options

M12 A code Bulkhead connector  (Panel Mounting, Chassis mounting connector) Connector Housing: Brass with Nickel plating or Nylon + GF (plastic). Straight Pins and right-angle pin: Brass with Gold plating 6u” thick. Connector insert: Nylon + GF. UL94-V0 IP Protection: IP66, IP67, IP68 or IP69k.

Mounting Type	Female (Metal housing)	Male (Metal housing)	Female (Plastic housing)	Male (Plastic housing)
Rear Mounting Straight pin
Front Mounting Straight pin
Rear Mounting Straight R/A

M12 A code cable connector (M8 field wireable connector)

Female Metal & Plastic nut	Male Metal & Plastic nut

M12 A Code Molded Cable (M12 molded cable connector)

You can define any cable length or custom cable assembly at HOLIN.

Female Metal ＆ Plastic nut	Male Metal ＆ Plastic nut
